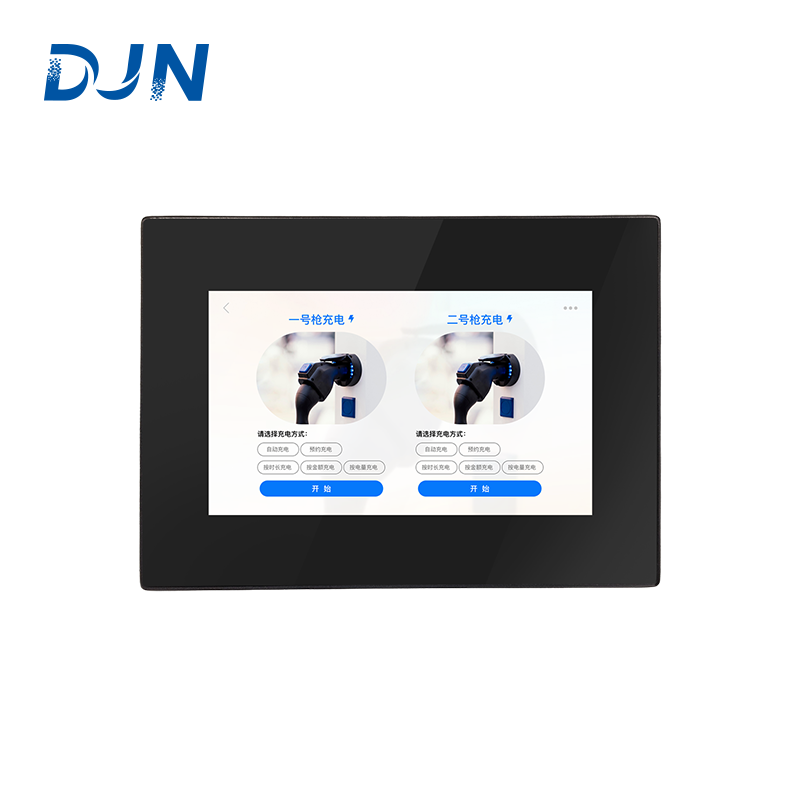

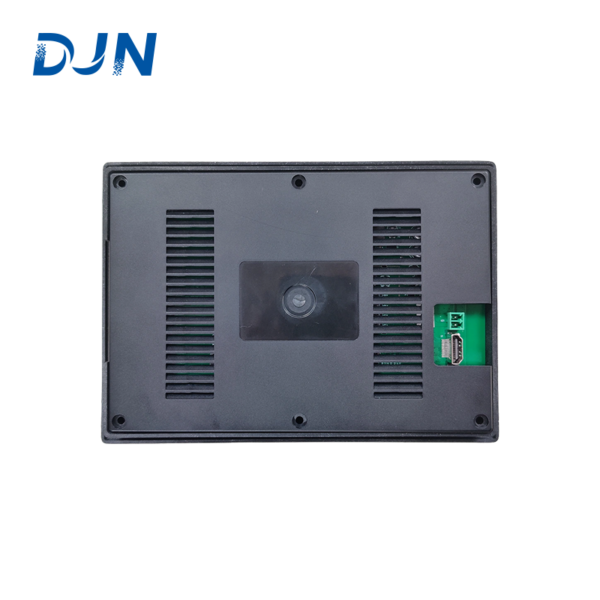

9G-32070-Z102H(Y)
HDMI interface LCD module, industrial level products
7″1024*600 pixels dot matrix, 16.7M color, IPS screen
CTP GG Structure, Partition ten point touch
| Item | Specification | Unit |
| Color | 16.7M color 24bit | |

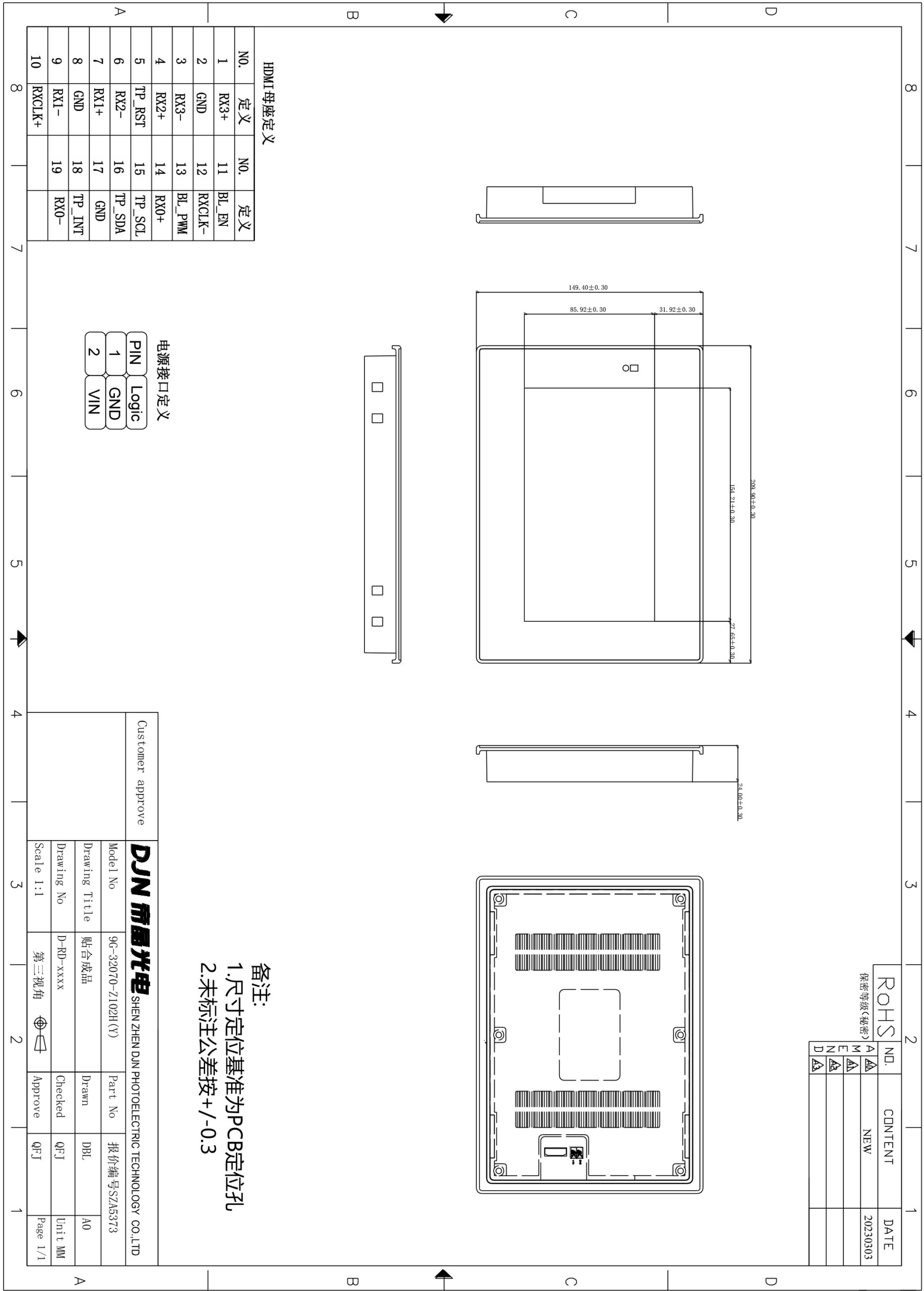

| Outline Dimension | 209.9*149.4*24.0 | mm |
| Active area | 154.21(H)*85.92(V) | mm |
| Resolution | 1024RGB(H) x600(V) | pixels |
| Backlight type | LED | - |
| Backlight Life | >20000 hour（Continuous operation at maximum brightness, brightness reduced to half time） | |
| Brightness | 700（Typ.）with TP | cd/m² |
| LCD Type | IPS TFT | - |
9G-31070-Z025H
Based on Quanzhi SOC F1C100S chip, running H system, industrial level products
7"800*480 pixels dot matrix, 16.7M color, TN screen
RTP GF Structure
9G-31070-Z179H
DVI-I interface LCD module, industrial level products
7"800*480 pixels dot matrix, 16.7M color, TN screen
RTP FG Structure, Conventional single-point touch control
9G-31101-Z180H
DVI-I interface LCD module, industrial level products
10.1"1024*600 pixels dot matrix, 16.7M color, IPS screen
RTP FG Structure，Conventional single-point touch control
All material of MODULE and process measure up to ROHS、HF、REACH
9G-12101-Z096H
Industrial Level Products
10.1"800*1280 pixels dot matrix, 16.7M color, IPS screen
CTP GG Structure，Partition ten point touch
All material of MODULE and process measure up to ROHS、HF、REACH
