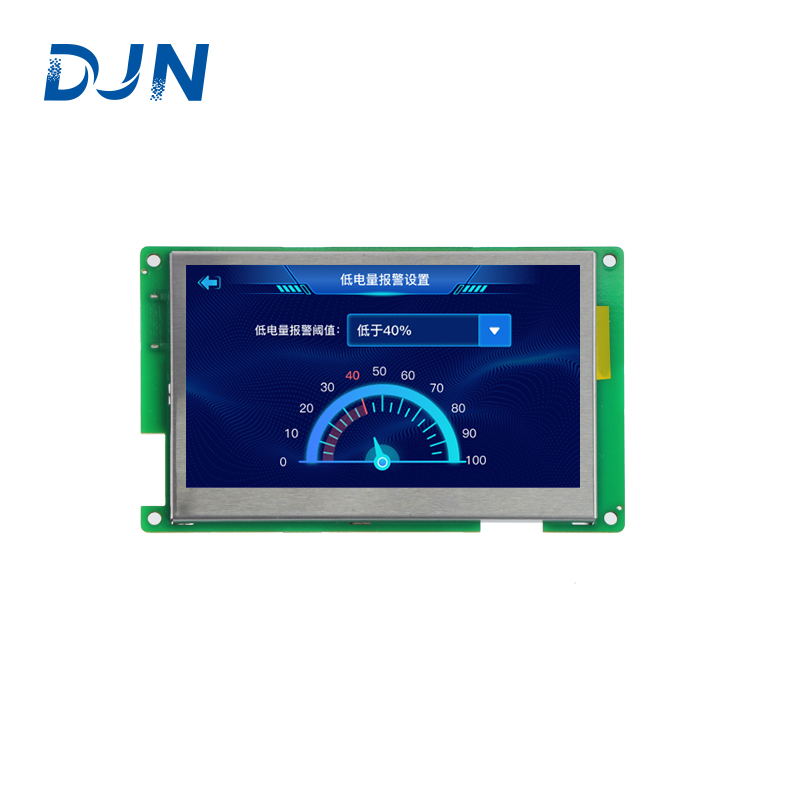

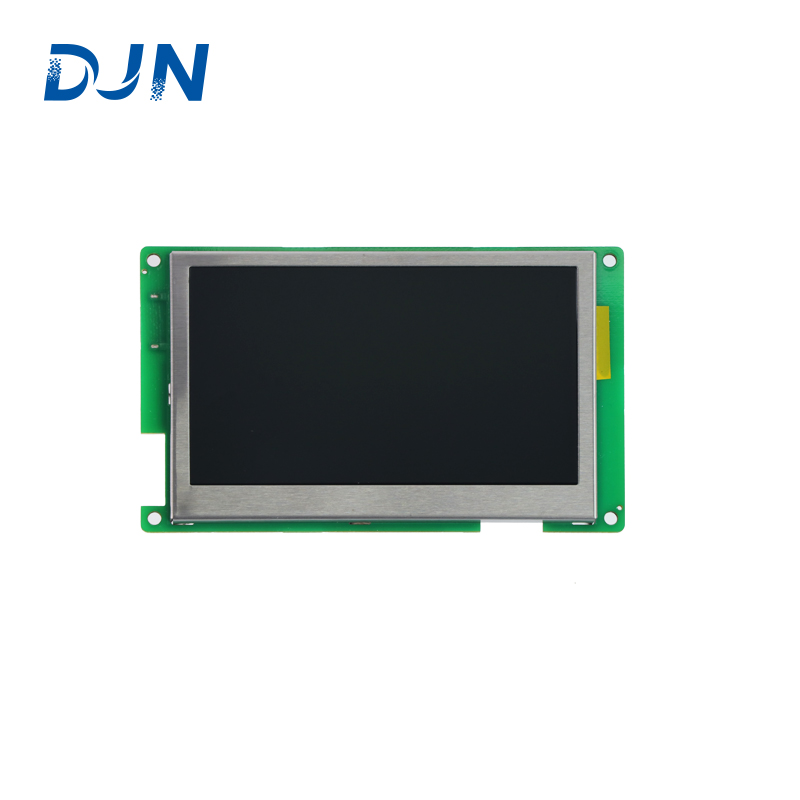

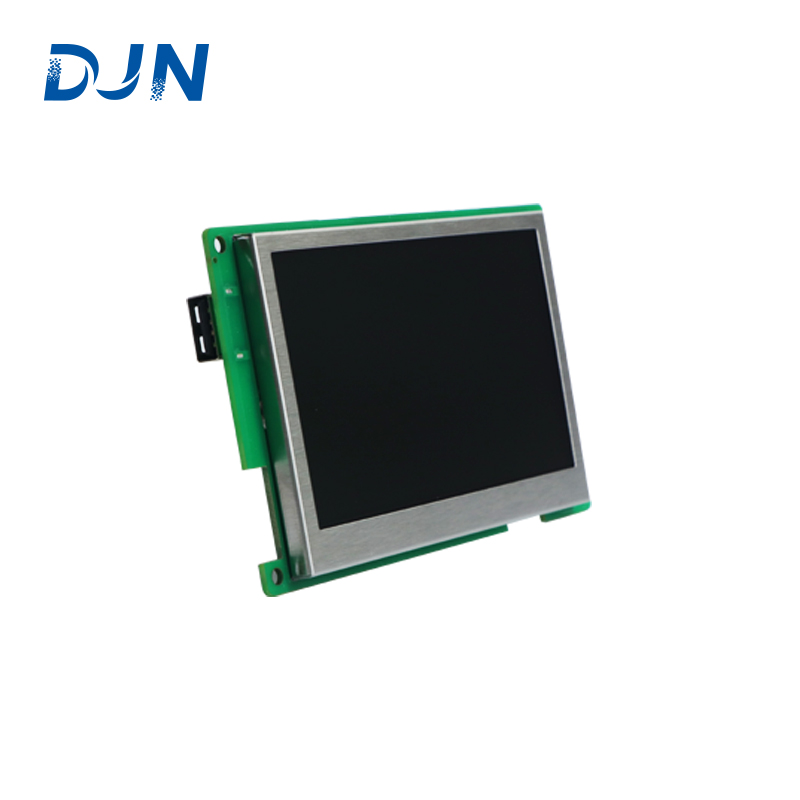

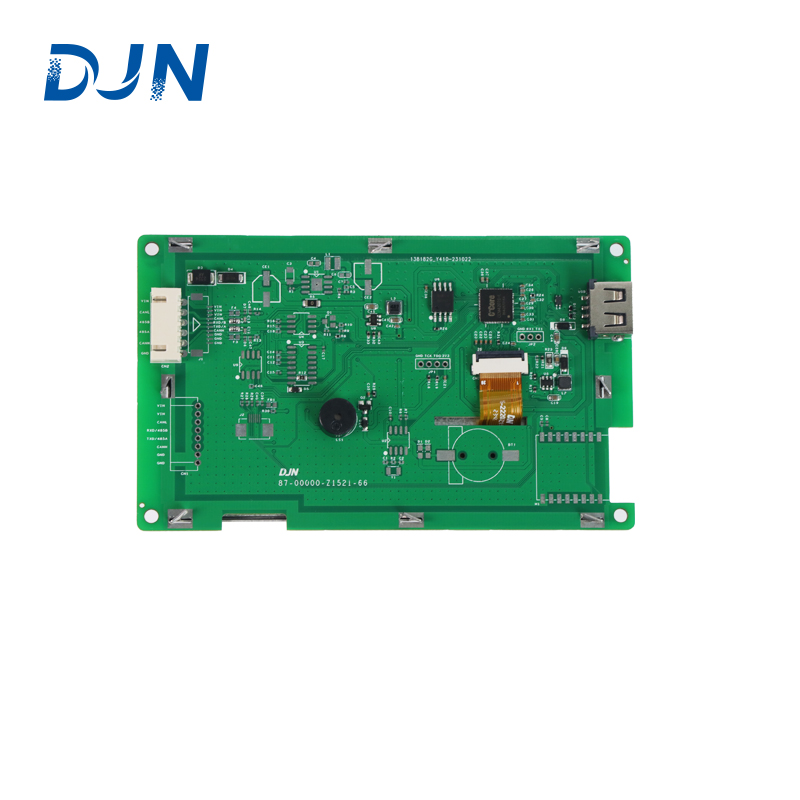

9G-21043-Z152H
Based on Guoxin CCM4201S-L chip, running H system, industrial level products
4.3″480*272 pixels dot matrix, 16.7M color, TN screen, normal viewing angle
| Item | Specification | Unit |
| Color | 16.7M color screen，65K color complete machine | |

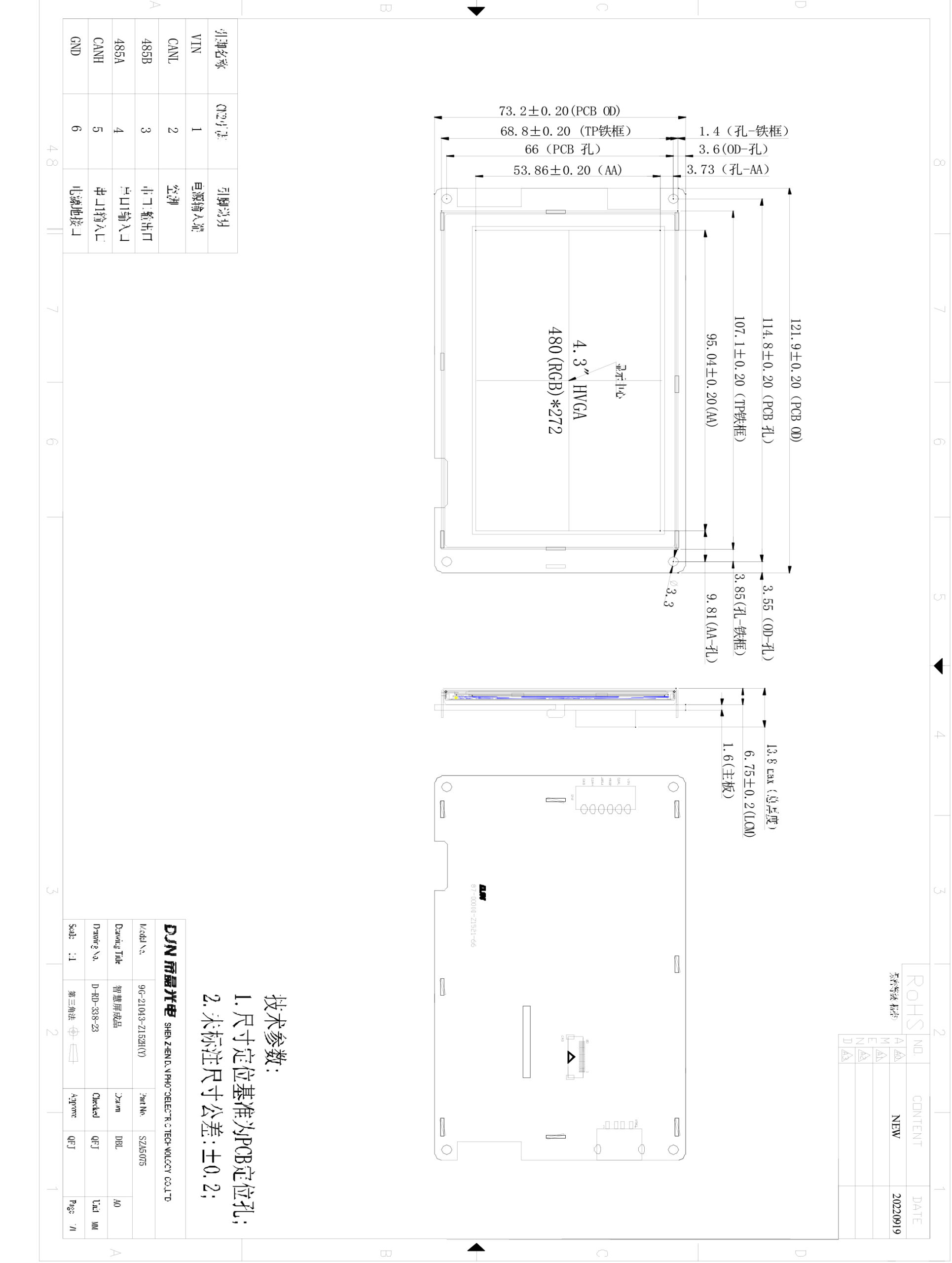

| Outline Dimension | 121.90*73.2*13.8 | mm |
| Active area | 95.04 (H)*53.86(V) | mm |
| Resolution | 480RGB(H) x272(V) | pixels |
| Backlight type | LED | - |
| Backlight Life | >20000 hour（Continuous operation at maximum brightness, brightness reduced to half time） | |
| Brightness | 310（typ）without TP | cd/m² |
| LCD Type | TN LCD | - |
9G-32070-Z102H(Y)
HDMI interface LCD module, industrial level products
7"1024*600 pixels dot matrix, 16.7M color, IPS screen
CTP GG Structure, Partition ten point touch
9G-31070-Z025H
Based on Quanzhi SOC F1C100S chip, running H system, industrial level products
7"800*480 pixels dot matrix, 16.7M color, TN screen
RTP GF Structure
9G-32043-Z183H
Based on Quanzhi SOC F1C100S chip, running H system, industrial level products
4.3"480*272 pixels dot matrix, 7M color, IPS screen, full viewing angle
RTP FG Structure，Conventional single-point touch control
9G-12101-Z096H
Industrial Level Products
10.1"800*1280 pixels dot matrix, 16.7M color, IPS screen
CTP GG Structure，Partition ten point touch
All material of MODULE and process measure up to ROHS、HF、REACH
