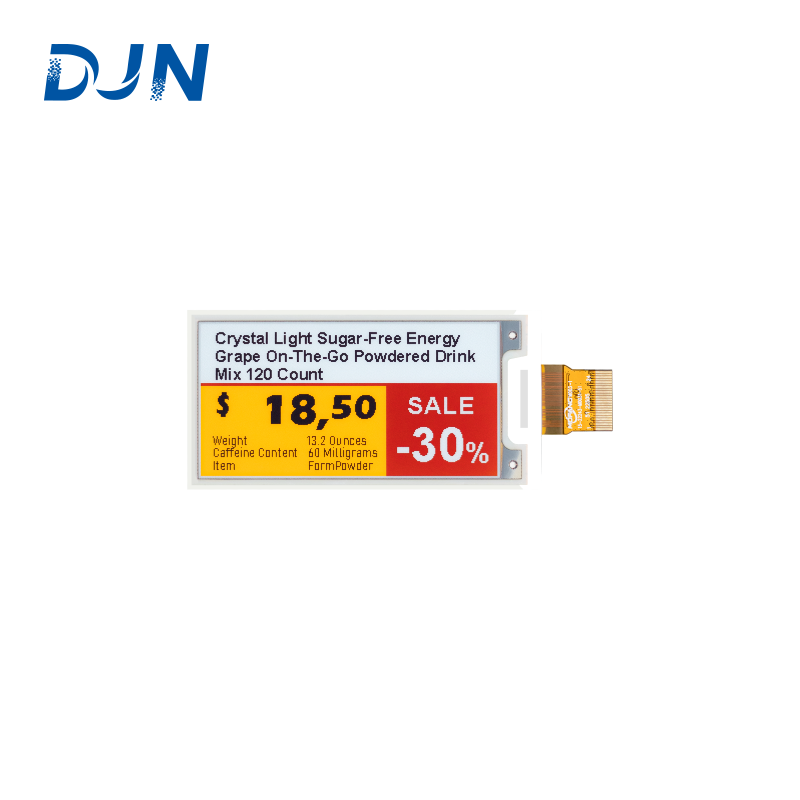

MF-12664-M011F-J
Ink Cubic-M011F-J is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design. The 2.66″ active area contains 184×360 pixels, and has 2-bit B/W/Y/R full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.
Parameter | Specifications | Unit |
Screen Size | 2.66 | Inch |
Display Resolution | 184(H)×360(V) | Pixel |
Active Area | 30.69(H)×60.05(V) | mm |
Pixel Pitch | 0.167×0.167 | mm |
Pixel Configuration | Rectangle |
|
Outline Dimension | 37.11(H)×72.59(V) ×0.92(D) | mm |
Weight | 5.01±0.5 | g |
MF-1A202-M023F
Ink Cubic-M023F is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design. The display is capable to display images at 1-bit black,white and red full display capabilities.The 10.2" active area contains 960×640 pixels. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.
MF-12662-M011F
Ink Cubic-M011F is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design. The2.66”active area contains 184×360 pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.
MF-11542-M022F
Ink Cubic-M022F is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design.The1.54”active area contains 152×152pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gatebuffer,source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.
MF-11502-M007F
Ink Cubic-M007F is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design.The 1.5”active area contains 200×200pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gatebuffer,source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.
