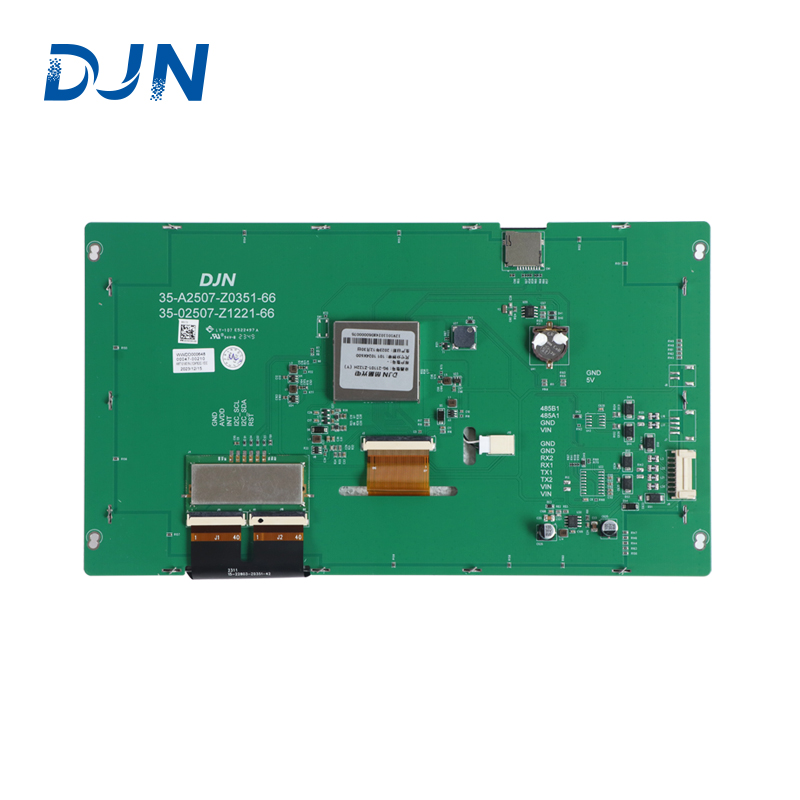

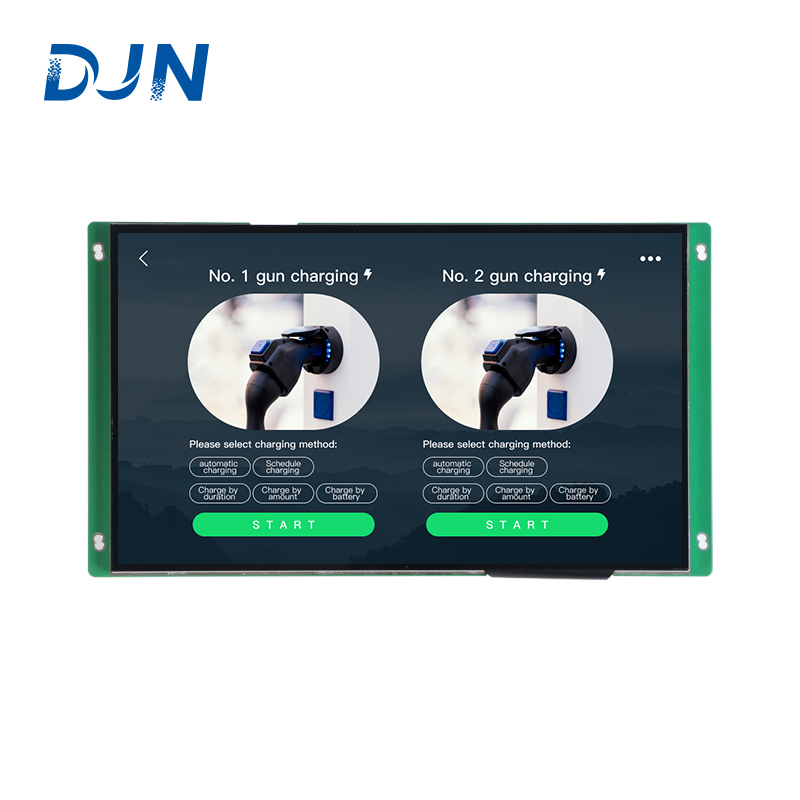

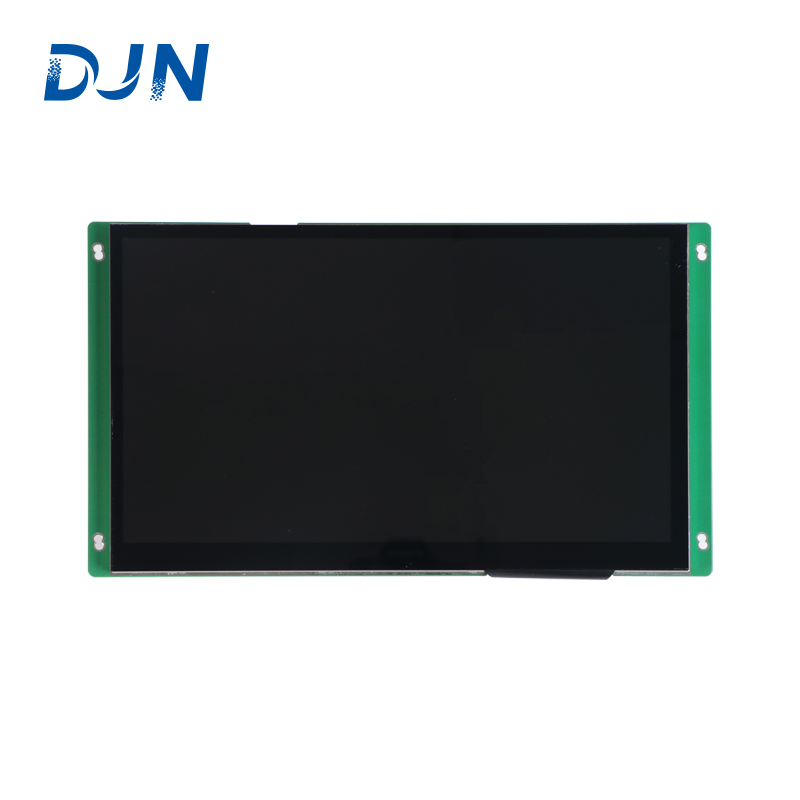

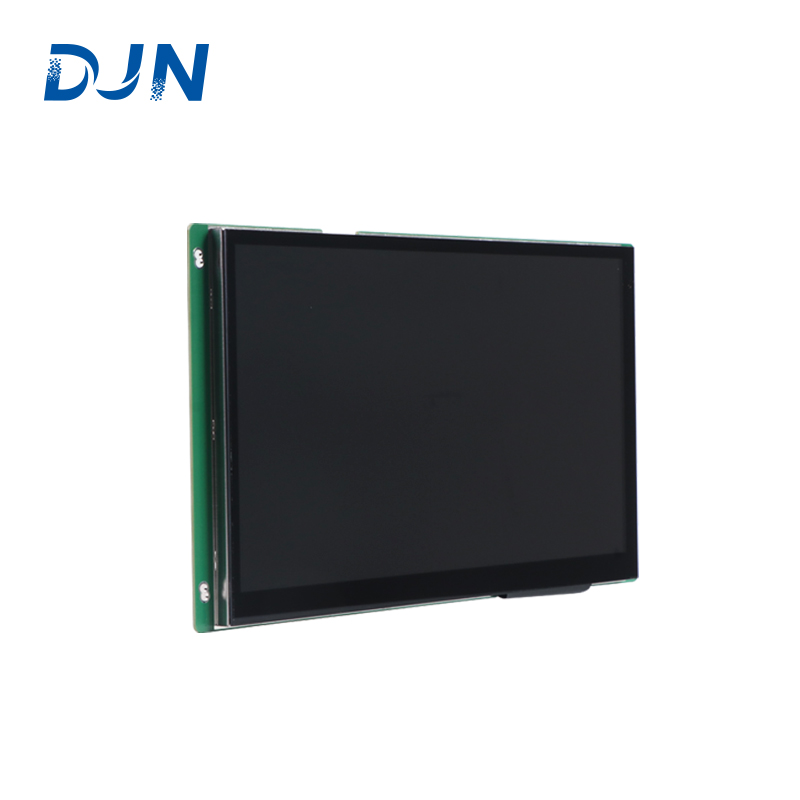

9G-21101-Z122H
Based on Quanzhi SOC F1C100S chip, running H system, industrial level products
10.1″1024*600 pixels dot matrix, 16.7M color,IPS screen
CTP GG Structure
| Item | Specification | Unit |
| Color | 16.7M color screen，65K color complete machine | |

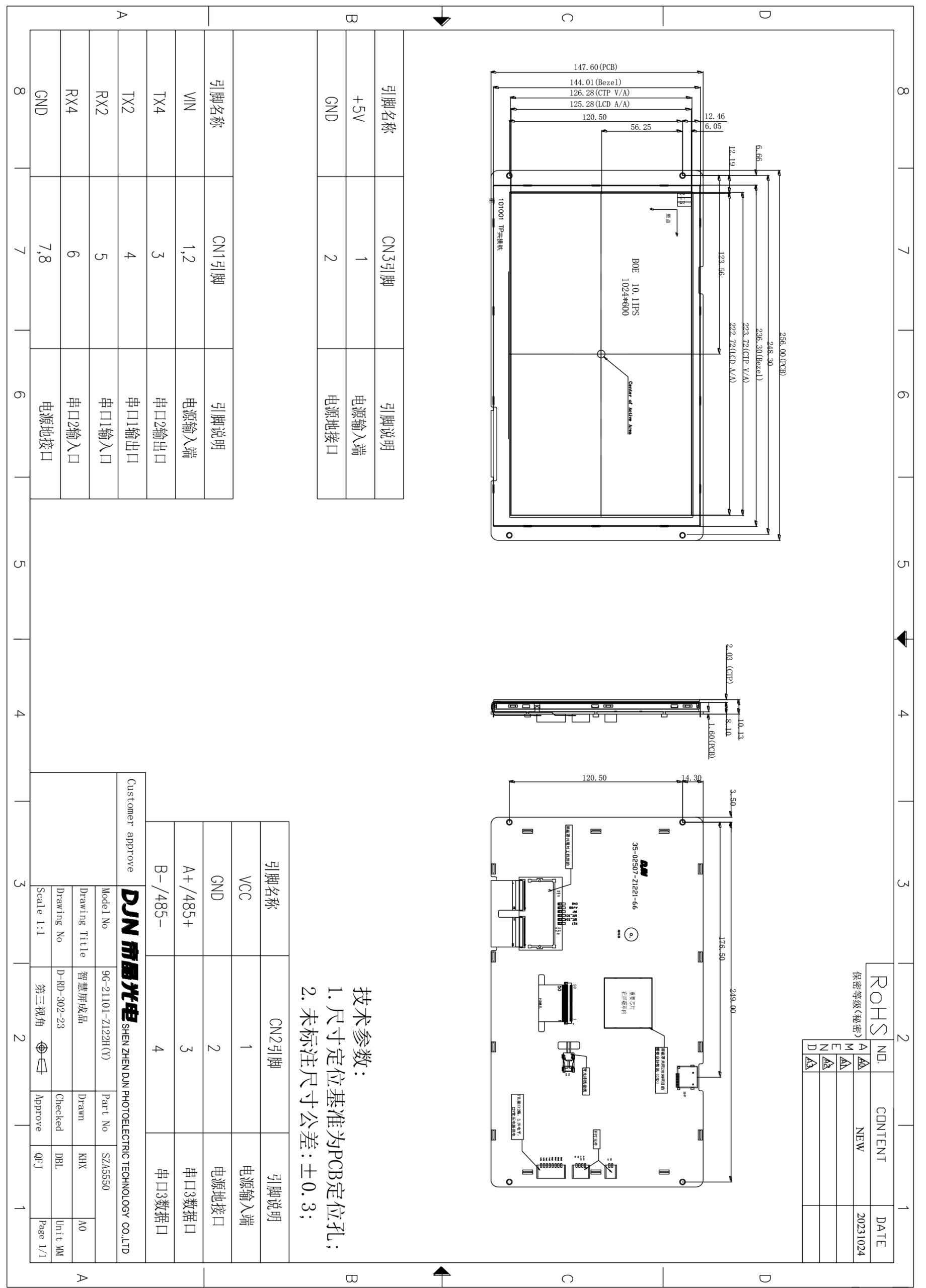

| Outline Dimension | 256*147.6*10.05 | mm |
| Active area | 222.72 (H) × 125.28 (V) | mm |
| Resolution | 1024(H)×600(V) | pixels |
| Backlight type | LED | - |
| Backlight Life | >20000 hour（Continuous operation at maximum brightness, brightness reduced to half time） | |
| Brightness | 550（Typ.）with TP | cd/m² |
| LCD Type | IPS | - |
9G-31101-Z171H-H
Based on Quanzhi SOC F1C100S chip, running H system, industrial level products
10.1"1024*600 pixels dot matrix, 16.7M color,IPS screen
CTP FG Structure，Conventional five point touch control
9G-32070-Z102H(Y)
HDMI interface LCD module, industrial level products
7"1024*600 pixels dot matrix, 16.7M color, IPS screen
CTP GG Structure, Partition ten point touch
9G-22070-Z101H(Y)
Based on Quanzhi sOC F1C100S chip, running H system, industrial level products
7"1024*600 pixels dot matrix, 16.7M color, IPS screen
CTP GG Structure，Partition ten point touch
9G-12101-Z096H
Industrial Level Products
10.1"800*1280 pixels dot matrix, 16.7M color, IPS screen
CTP GG Structure，Partition ten point touch
All material of MODULE and process measure up to ROHS、HF、REACH
