Industrial Level Products

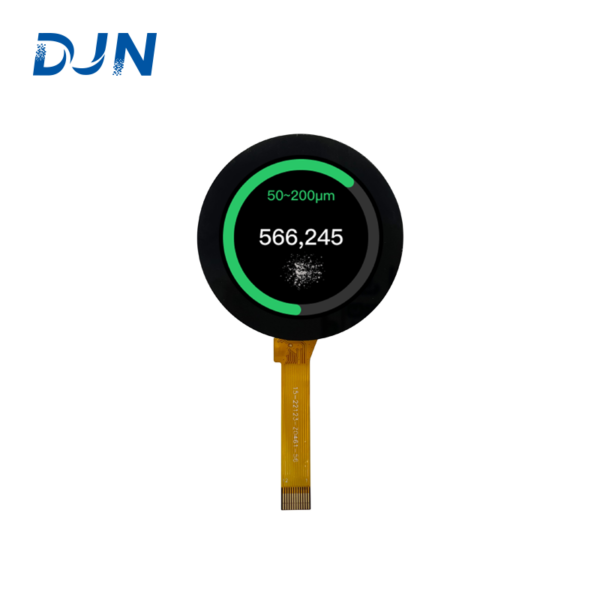

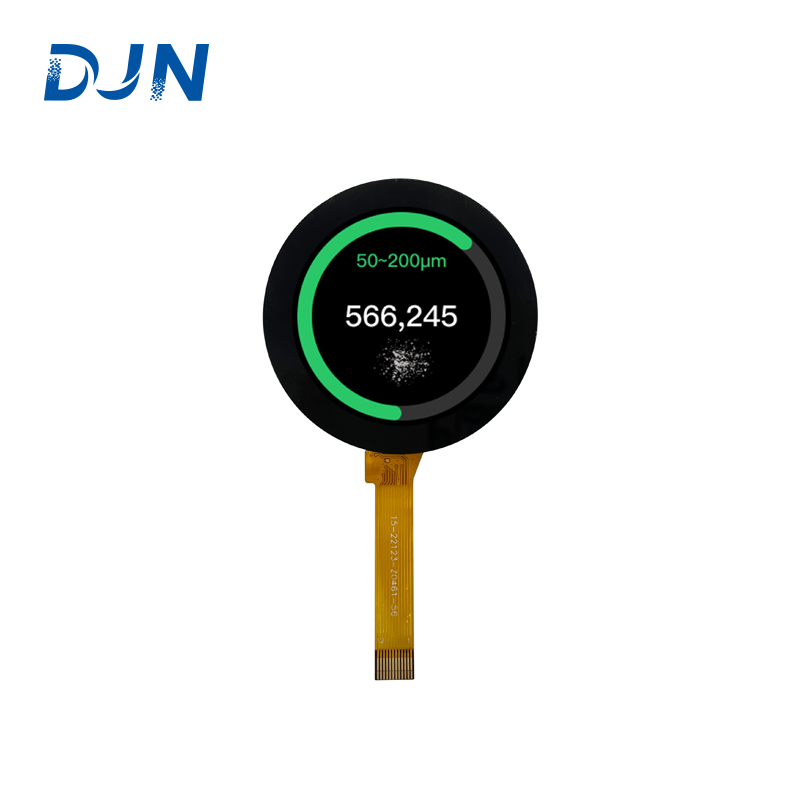

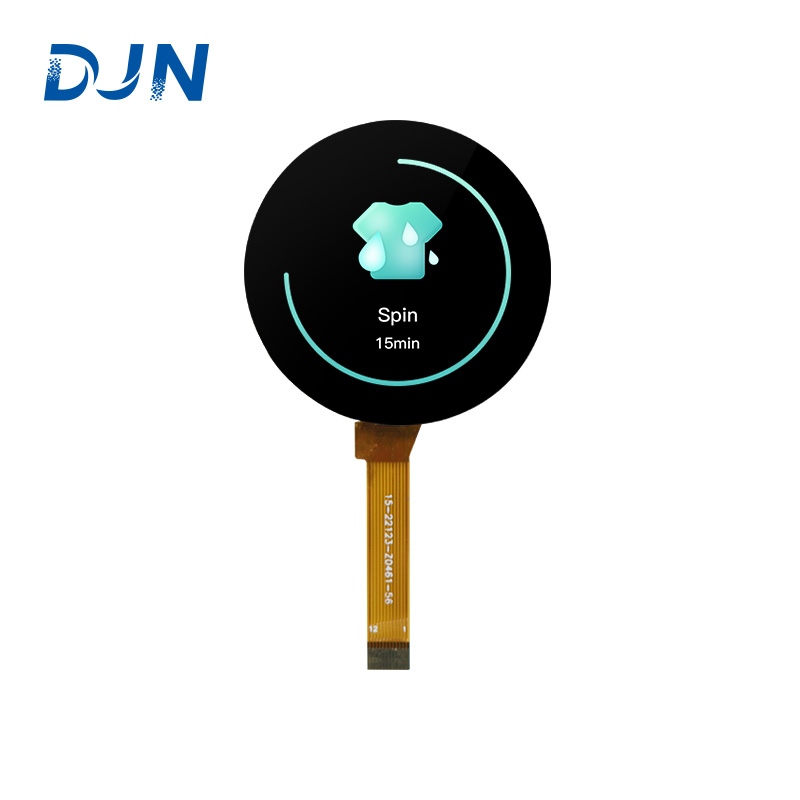

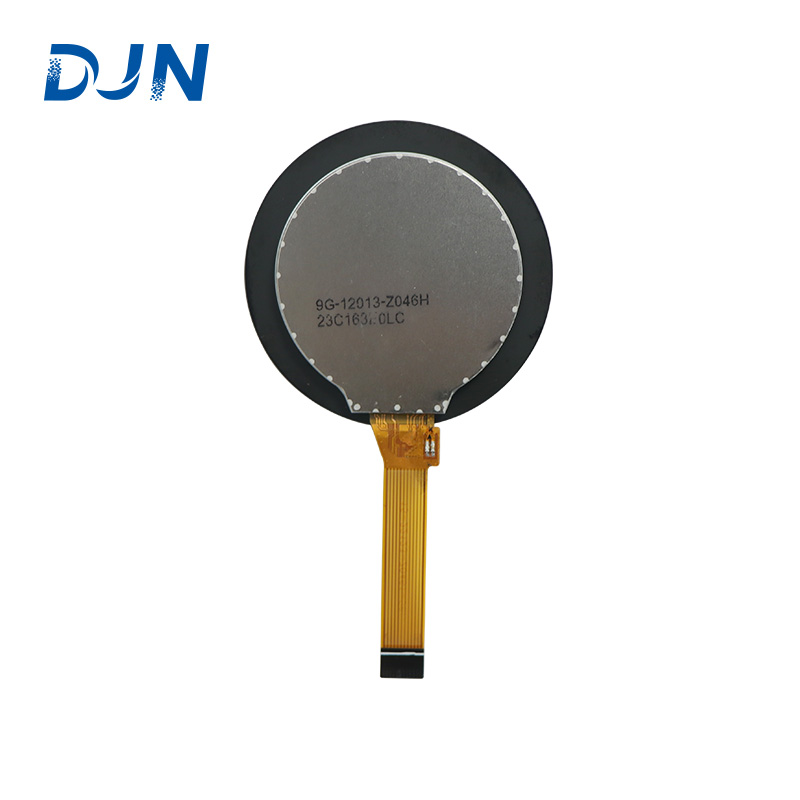

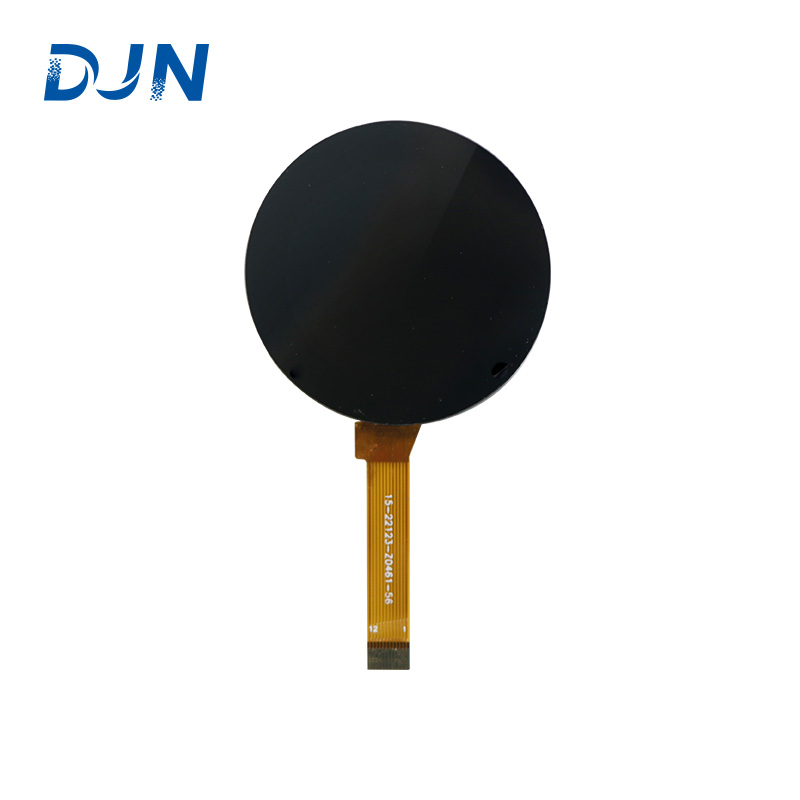

1.28″240*240 pixels dot matrix, 262K color, IPS screen
All material of MODULE and process measure up to ROHS、HF、REACH
Item | Specification | Unit |
Screen Size | 1.28 | inches |
Outline Dimension | 45.20*82.54*2.55 | mm |
Active area | 32.4(H) ×32.4 (V) | mm |
Resolution | 240 (H)×240 (V) | pixels |
Sub pixel size | 0.135(H) × 0.135(V) | mm |
Pixel arrangement | RGB Vertical Stripe |
|
Display mode | normally black |
|
Module Weight | TBD | g |
Driver IC | GC9A01 |
|
Interface | SPI |
|
Backlight Power consumption | 0.136max | Wt |
LCM Input voltage | VCC=+3.3V | V |
